Meian Focus Wired Dual/Triple Infrared Beam Sensor, IP65 Waterproof Infrared Barrier Detector, Infrared Barrier for Villa Farm
Meian Focus Wired Dual/Triple Infrared Beam Sensor, IP65 Waterproof Infrared Barrier Detector, Infrared Barrier for Villa Farm
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: i Alarm
Origin: Mainland China
Hign-concerned Chemical: None
Certification: CE
Model Number: ABE
Smart home platform: other
Name: Wired Infrared Beam Detector
Number of beams: 2 beams/ 3 beams
Detection method: All beams simultaneously interrupted detection type
Light source: Infrared digital pulse type
Shading time: 50-240ms (stepless adjustable)
Power supply voltage: DC12V-24V
Alarm signal threshold: ≤0.5V
Dismantling alarm: Support
Current consumption: ≤100mA(a pair)
Working Temperature: -25℃~+55℃
Working humidity: 5%-95%RH (relative humidity)
Optical axis adjustment angle (horizontal): 180°(±90°)
Optical axis adjustment angle (vertical): 20°(±10°)
Application: Community Wall, Farm Fence, Villa Fence, etc.
Choice: yes
semi_Choice: yes

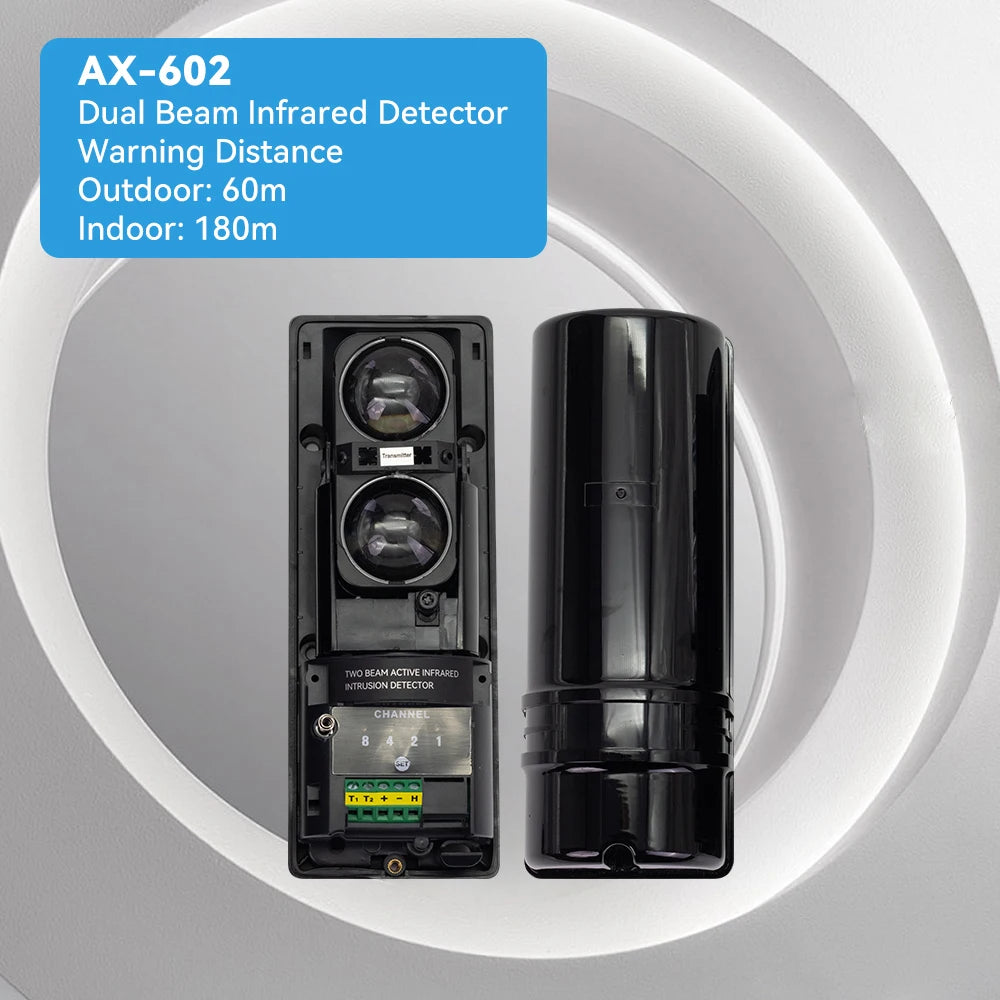

Meian Focus Wired Dual/Triple Infrared Beam Sensor
Working Principle:
The light emitted by the transmitter directly enters the receiver. When the detected object passes between the transmitter and the receiver to block all beams of light, the detector will sends an alarm signal to the host. Suitable for perimeter defense and alarm systems for fences, yards, farms, etc.
Product Features:
1.Dual-beam/ Triple-beam Infrared Sensor: Adopts aspherical coated optical lenses and professional DSP chip, strong anti-interference, high levels of anti-RFI / EMI capability.
2.Digital Fuzzy Artificial Intelligence Recognition: Intelligent power emission.
3.Intelligent 8 Frequency Conversion: Anti-interference and anti-false alarms.
4.Digital Display: Shows the bus address, signal strength and operating frequency in real time.
5.Adjustable Optical Axis Angle: 90°left/right, 10°up/down for easy installation.
6.Intelligent Heating Function (optional): The receiver and transmitter have built-in iron-aluminum alloy, which can be connected to a 5V heater (optional). When the ambient temperature is lower than 5℃, the HEAT terminal will output a 5.5V voltage to the heater Power supply can effectively prevent light blocking caused by haze and low temperature.
7.Tamper Function: This product has a tamper switch, which can trigger an alarm when the outer cover is loose under working conditions.
Note: This link only includes infrared detector, wires and host need to be
purchased separately.
Alarm Principle
The intruder blocks all infrared beams and triggers an alarm
Aspheric Coated Optical Lenses
Improves the infrared emission focusing ability and guarantees the quality of infrared long-distance transmission
8 Frequency Conversion
Set different frequency bands for each pair of Infrared Detector to reduce interference
Digital Display
Dual digital tube display of the bus address, signal strength and operating frequency, easy to install and maintain
Adjustable Optical Axis Angle
Horizontal: 180°(±90°), Vertical): 20°(±10°), convenient to focus in all directions during installation
High Sealing Design
Dust-proof, waterproof, rain and fog-proof, effectively preventing interference caused by the external environment
Pet-proof, Not Easy to False Alarm
Only when all infrared beams are blocked simultaneously will an alarm be triggered, and small animals will not trigger an alarm when only one beam of light is blocked
Wide Range of Applications
Suitable for Community Wall, Farm Fence, Villa Fence, Balcony Defense, School Fence, Warehouse Fence, Orchard Fence, Factory Fence, etc.
Product Details
Product Circuit Wiring Diagram
Product Parameters
Note: This link only includes infrared detector, wires and host need to be purchased separately.
